FORGE - Fine-grained Multimodal Evaluation for Manufacturing Scenarios

Overview

Existing VLM benchmarks test coarse-grained perception ("What is this?"). FORGE demands fine-grained, model-number-level understanding for real manufacturing quality control.

Why FORGE?

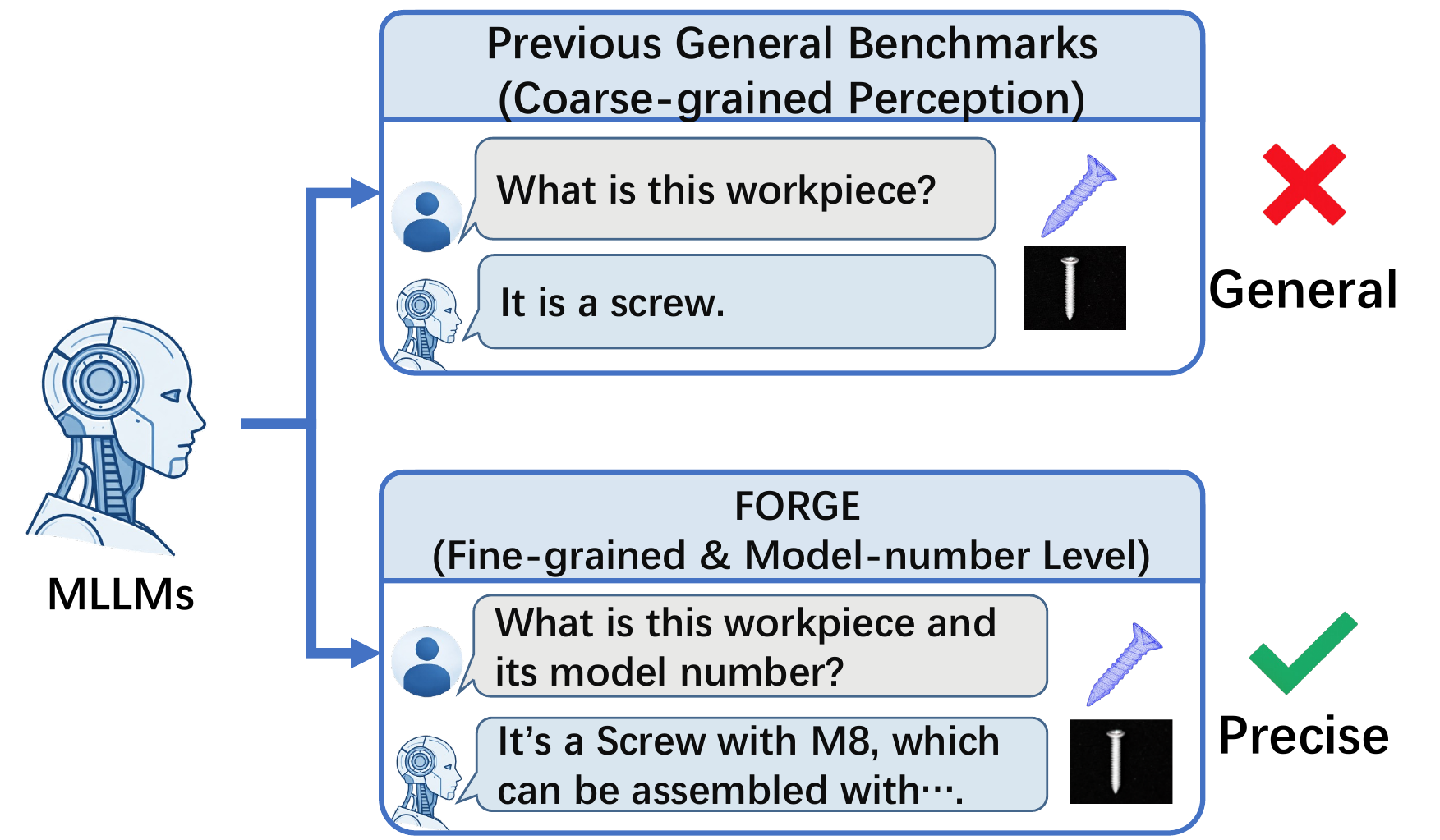

Previous benchmarks ask "Is this a screw?" FORGE asks "Is this an M8 screw, and does it match the M10 specification required for this assembly?"

We provide the first comprehensive evaluation combining 2D images and 3D point clouds with domain-specific manufacturing knowledge, covering 14 workpiece categories and 90 distinct model specifications.

Our evaluation of 18 frontier and open-source MLLMs reveals that visual grounding is not the bottleneck — instead, insufficient domain-specific knowledge is the primary limitation.

FORGE Pipeline

From physical workpieces to standardized evaluation: FORGE bridges the gap between industrial reality and MLLM reasoning.

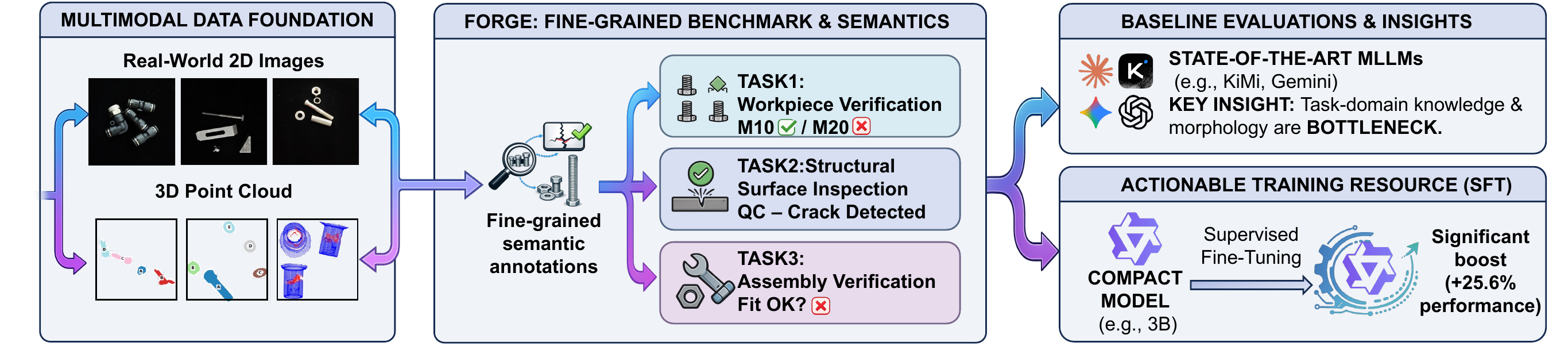

Figure 1. The FORGE pipeline: (1) Raw manufacturing data from the physical world, (2) Standardization with fine-grained domain knowledge injection, (3) Task-oriented scenarios with both 3D point clouds and 2D rendered views, (4) MLLM cognition evaluation revealing macro-perception vs. micro-reasoning gaps.

Manufacturing Tasks

Three core quality inspection tasks spanning workpiece verification, surface defect inspection, and assembly verification.

Task 1: WorkVeri

Workpiece Verification — Given an assembly, identify which part has the wrong model number. Requires fine-grained discrimination between similar-looking parts (e.g., M8 vs M10 bolts).

451 image + 496 three-view cases

Task 2: SurfInsp

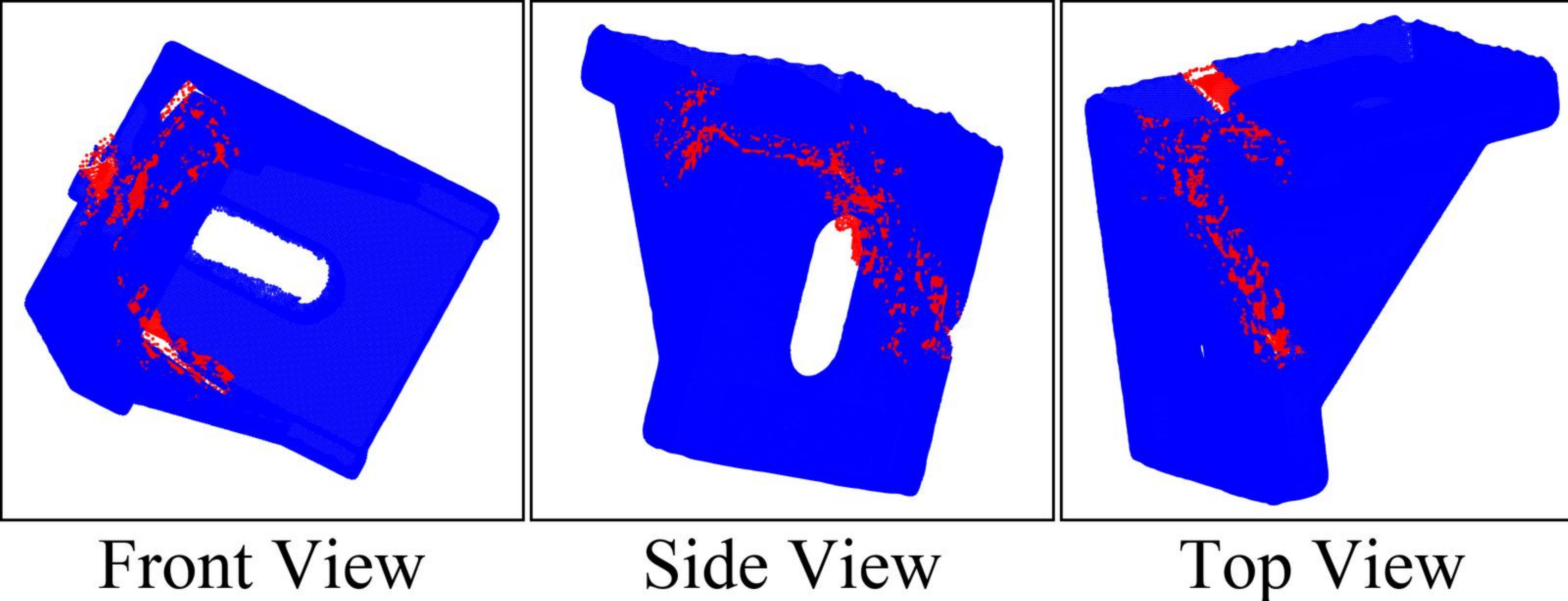

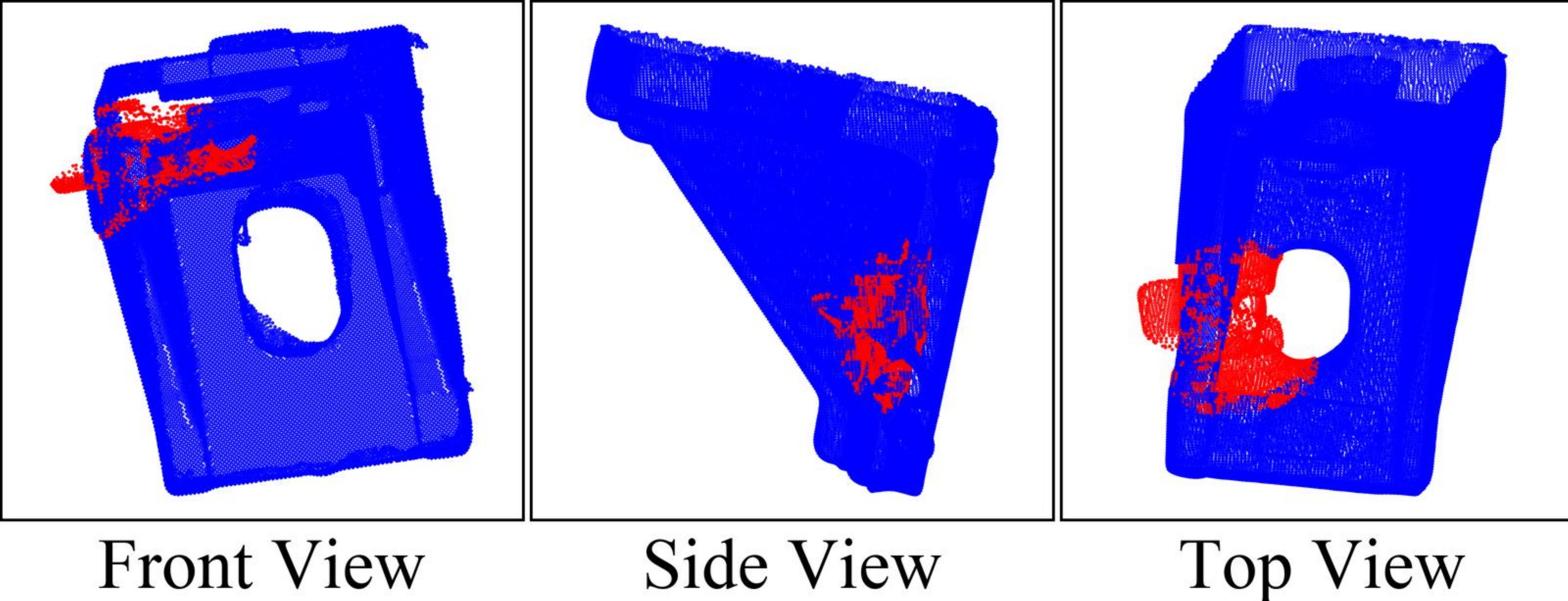

Surface Inspection — Classify manufacturing defects: crack, cut, deformation, or dent. Two-part answer: first determine if normal, then identify defect type.

830 three-view cases, 4 defect types

Task 3: AssyVeri

Assembly Verification — Identify extra, mismatched, or missing parts in an assembly. Tests compositional understanding of multi-component systems.

857 image + 309 three-view + 377 missing-part cases

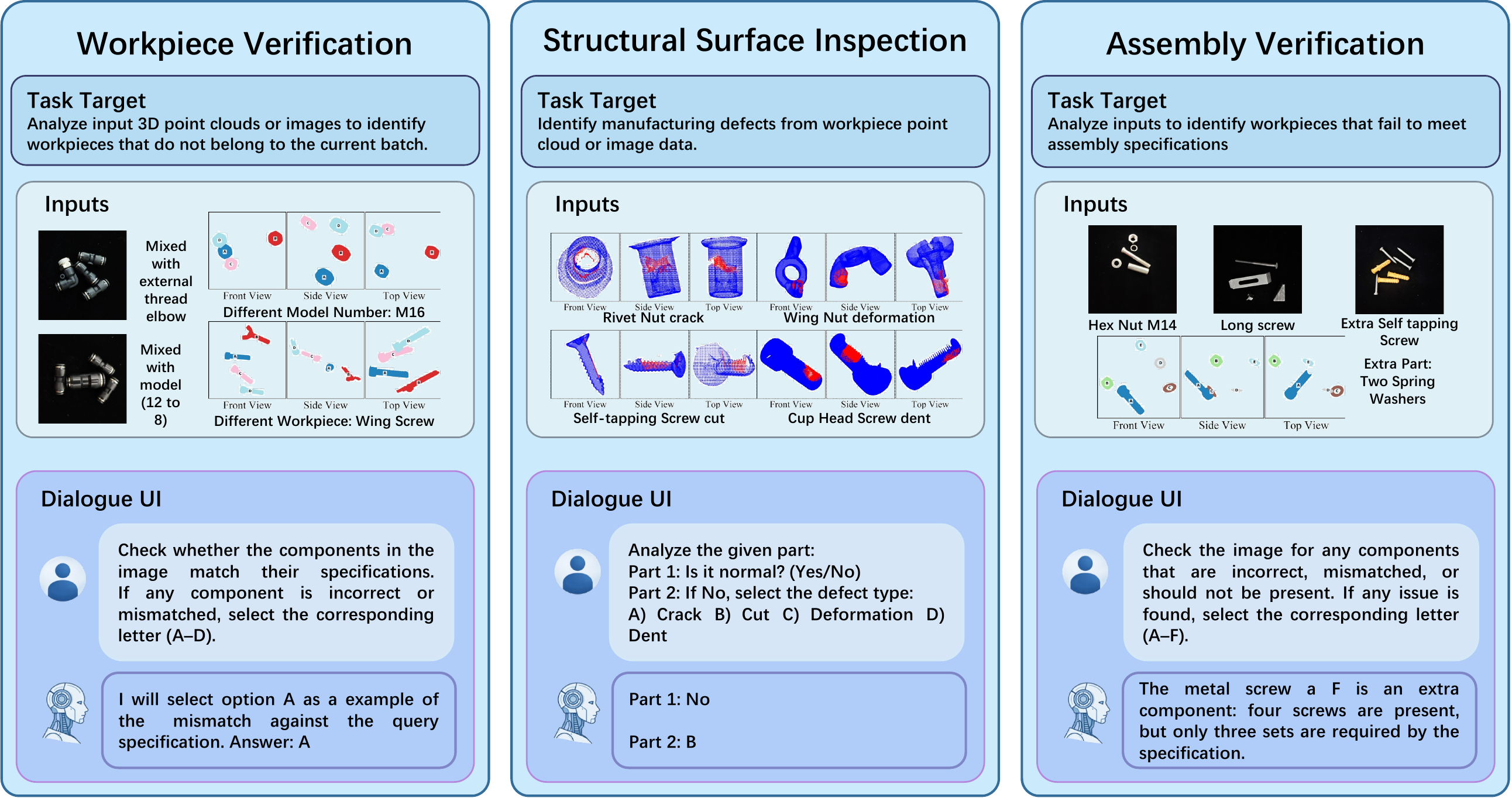

Figure 2. Examples for each task showing inputs (2D images / 3D three-view renders), dialogue format, and expected outputs.

Evaluation Results

Comprehensive evaluation of 18 MLLMs across all tasks with zero-shot (Z), reference (R), and in-context learning (F) settings.

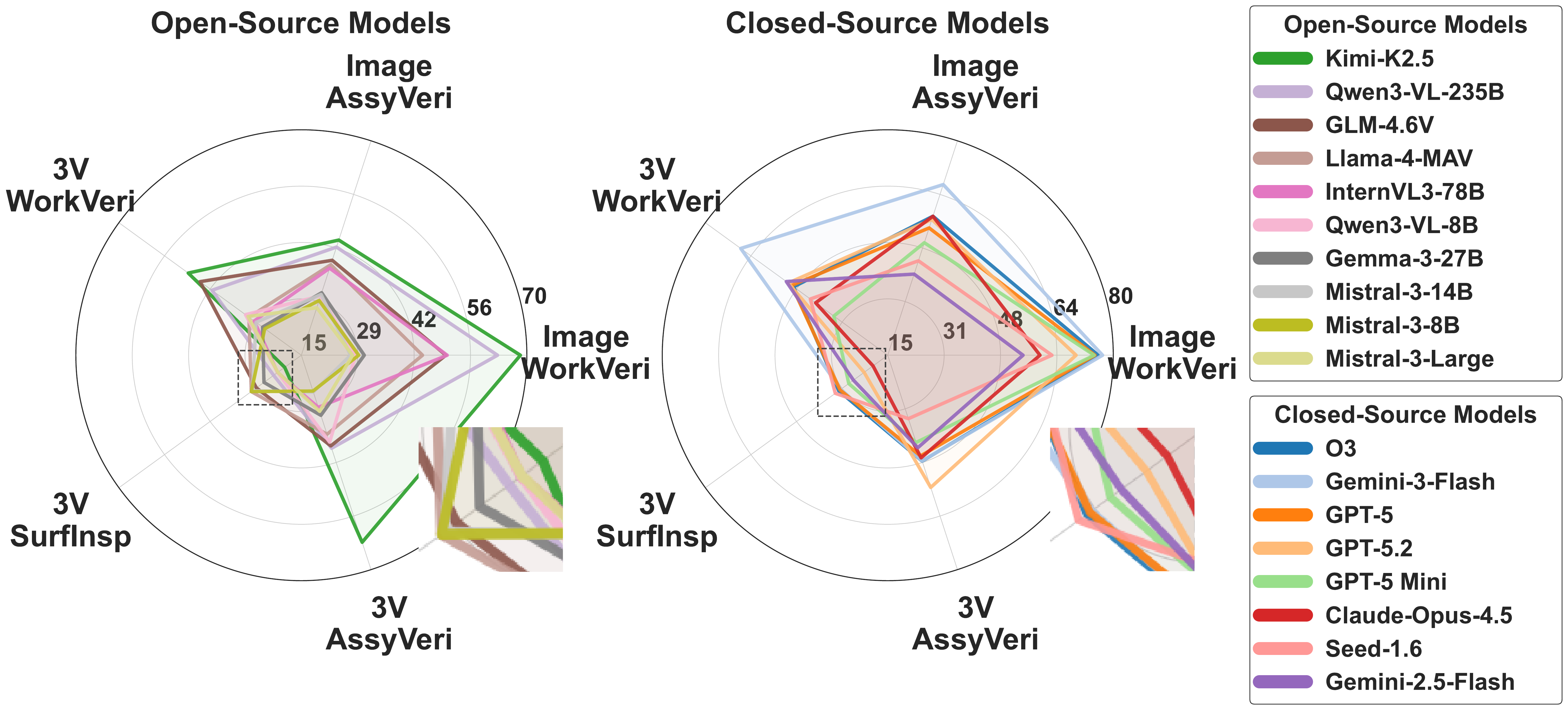

Figure 3. Radar chart comparing open-source and closed-source model performance across all tasks and modalities.

Task 1: Workpiece Verification (Accuracy %)

Model	Image			Three-View
	Z	R	F	Z	R	F
Closed-Source Models
GPT-5	74.7	64.2	85.2	60.7	29.8	56.5
GPT-5.2	70.9	51.9	79.2	61.3	28.2	61.7
GPT-5 Mini	73.6	72.7	76.8	37.9	33.9	30.6
O3	75.2	64.1	76.3	57.9	28.8	56.9
Gemini-3-Flash	72.2	76.3	82.3	69.6	65.1	67.3
Gemini-2.5-Flash	55.8	51.7	54.5	56.0	43.5	53.6
Claude-Opus-4.5	59.4	56.1	61.0	39.1	27.8	55.0
Seed-1.6	67.0	49.7	70.3	54.4	26.8	46.2
Kimi-K2.5	60.1	56.7	62.7	19.4	10.1	44.0
Open-Source Models
Qwen3-VL-235B	64.1	57.6	66.3	51.4	32.9	34.3
Qwen3-VL-8B	35.3	23.9	25.1	41.3	26.8	26.2
InternVL3-78B	32.6	53.9	65.3	32.3	24.8	30.0
Llama-4-MAV	37.3	39.0	48.8	36.3	20.4	35.7
GLM-4.6V	25.3	50.3	49.8	46.4	43.8	44.4
Gemma-3-27B	25.9	30.4	34.6	27.6	23.6	28.8
Mistral-3-Large	25.7	25.4	31.0	33.9	20.8	37.3
Mistral-3-14B	32.5	20.2	24.2	32.5	25.0	28.4
Mistral-3-8B	29.9	24.2	32.0	30.8	18.1	28.6

Task 2: Surface Inspection (Accuracy %)

Model	Zero-Shot	Reference	Few-Shot
Closed-Source Models
Gemini-3-Flash	18.5	29.6	47.1
Claude-Opus-4.5	8.7	7.7	44.3
Seed-1.6	22.6	36.2	42.3
O3	21.1	36.2	40.0
Llama-4-MAV	27.0	24.1	39.1
GPT-5	22.0	35.7	38.3
Gemini-2.5-Flash	17.2	26.4	38.1
GPT-5 Mini	17.0	33.4	36.2
GPT-5.2	16.6	21.9	31.7
Kimi-K2.5	13.2	16.8	30.1
Open-Source Models
Mistral-3-8B	24.3	27.1	38.9
Gemma-3-27B	21.7	23.9	33.2
Mistral-3-14B	28.3	27.7	33.2
Qwen3-VL-235B	19.2	18.7	32.2
GLM-4.6V	23.5	23.8	38.4
Mistral-3-Large	19.8	19.8	26.7
InternVL3-78B	19.2	21.6	25.7
Qwen3-VL-8B	19.4	21.3	25.8

Task 3: Assembly Verification (Accuracy %)

Model	Image			Three-View
	Z	R	F	Z	R	F
Closed-Source Models
Gemini-3-Flash	58.1	70.4	71.4	47.2	46.3	47.6
GPT-5.2	43.2	53.5	63.2	54.0	57.0	53.7
Claude-Opus-4.5	52.1	56.4	62.9	42.1	50.8	45.3
O3	48.2	59.8	61.0	49.8	34.0	51.8
GPT-5	50.1	49.8	60.5	53.7	30.7	51.8
GPT-5 Mini	43.6	51.1	52.2	49.5	29.4	45.3
Seed-1.6	39.7	42.5	47.9	41.4	26.5	34.3
Gemini-2.5-Flash	39.6	32.2	46.7	45.0	40.1	44.0
Kimi-K2.5	18.8	11.7	25.8	11.7	6.5	22.0
Open-Source Models
Qwen3-VL-235B	36.9	40.2	50.2	41.1	28.8	39.5
GLM-4.6V	27.9	37.2	45.3	38.8	36.6	37.9
InternVL3-78B	33.1	36.1	42.4	34.3	22.0	28.8
Llama-4-MAV	32.1	25.8	36.3	38.2	30.1	37.5
Qwen3-VL-8B	31.9	28.4	30.3	39.2	33.0	38.8
Gemma-3-27B	28.3	31.7	32.9	27.2	32.0	32.0
Mistral-3-8B	29.6	26.8	30.3	24.6	18.4	29.4
Mistral-3-14B	29.7	32.0	28.8	28.2	19.1	25.9
Mistral-3-Large	29.1	23.7	28.5	26.2	26.9	25.9

Grounding Ablation (Accuracy %)

Testing spatial grounding ability independently from domain knowledge. High grounding accuracy confirms visual perception is NOT the bottleneck.

Model	Single-Image		Cross-Image		Avg
	C→L	L→C	L→L	C→C
Gemini-3-Flash	98.2	99.6	88.7	79.9	91.6
Qwen3-VL-235B	85.4	98.8	80.3	65.7	82.6
GPT-5.2	74.6	97.6	85.6	75.4	83.3
Seed-1.6	42.0	99.2	79.3	71.2	72.9
Mistral-3-8B	66.0	70.6	62.0	33.9	58.1

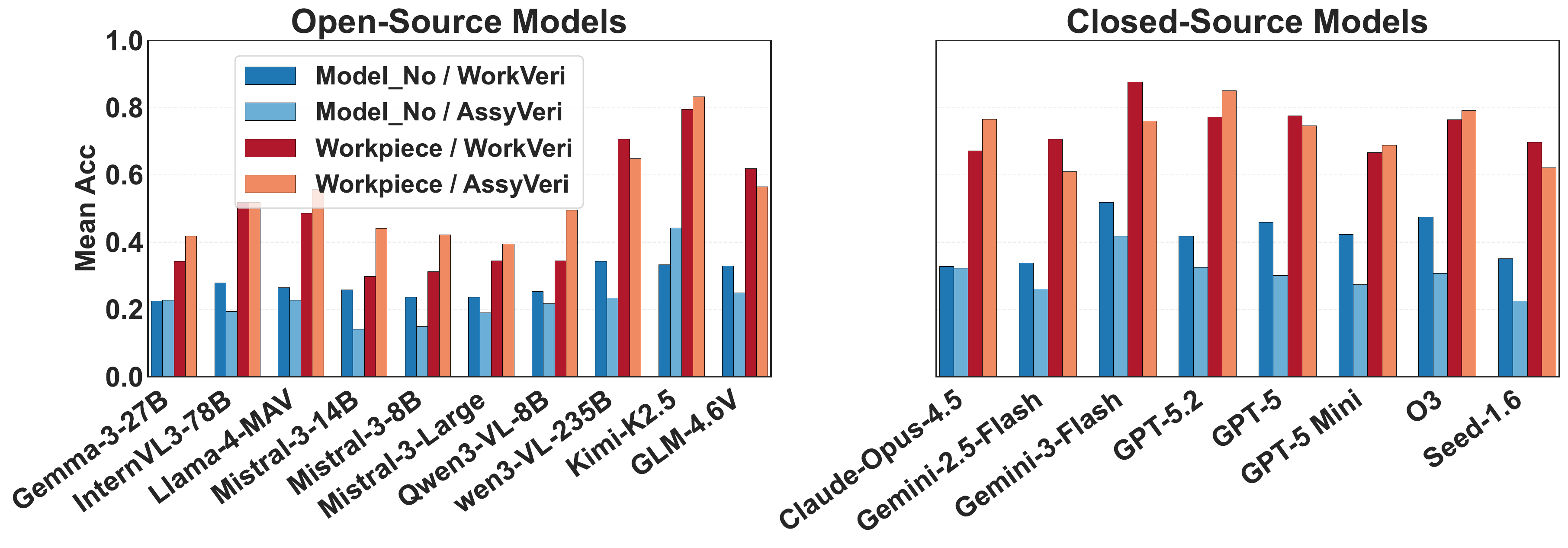

Figure 4. Model-number-level tasks (darker bars) are significantly harder than coarse workpiece-level tasks (lighter bars), revealing the domain knowledge gap.

Data Examples

Sample images from each task showing the diversity of industrial components, defect types, and evaluation modalities.

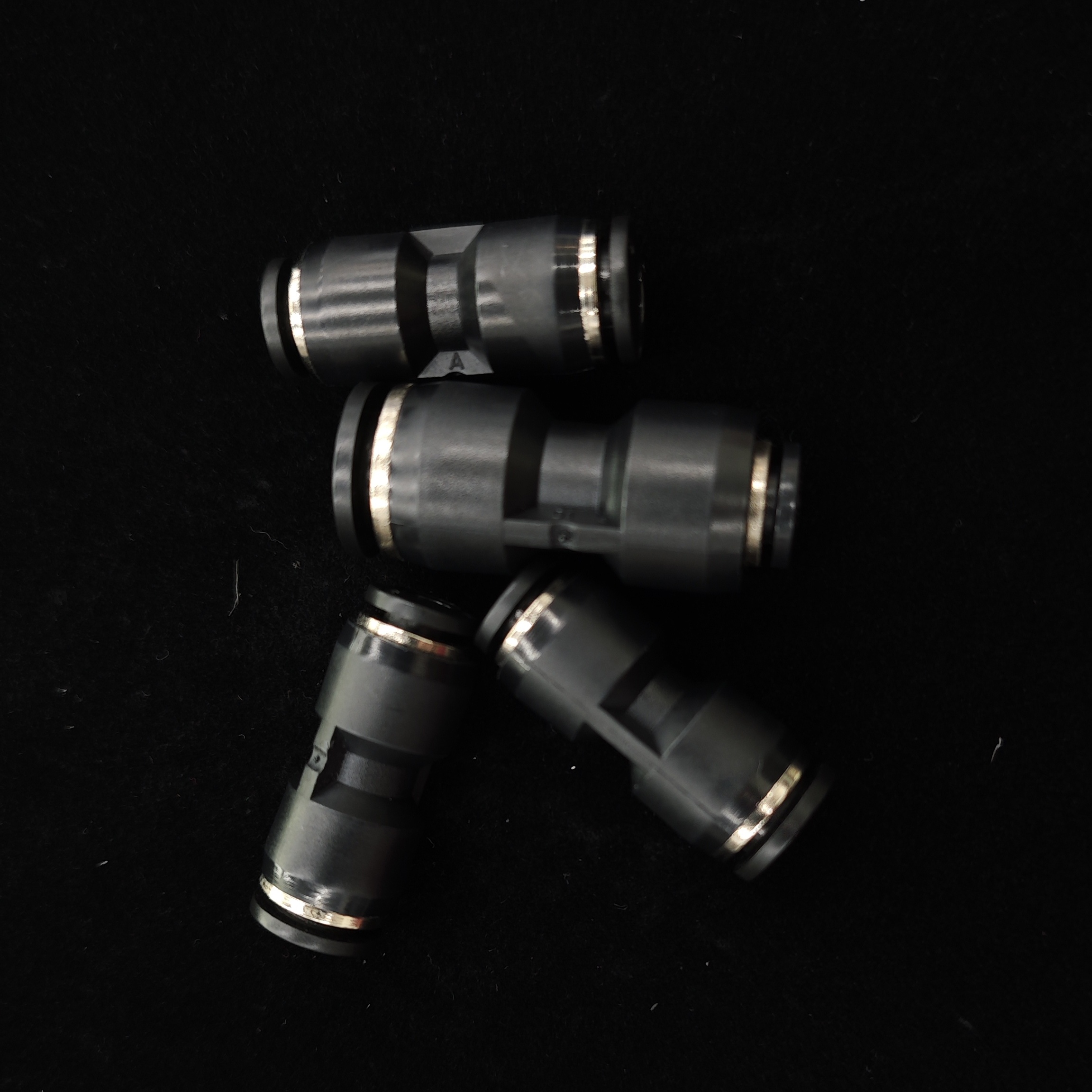

Task 1 Image — Assembly with one part having wrong model number

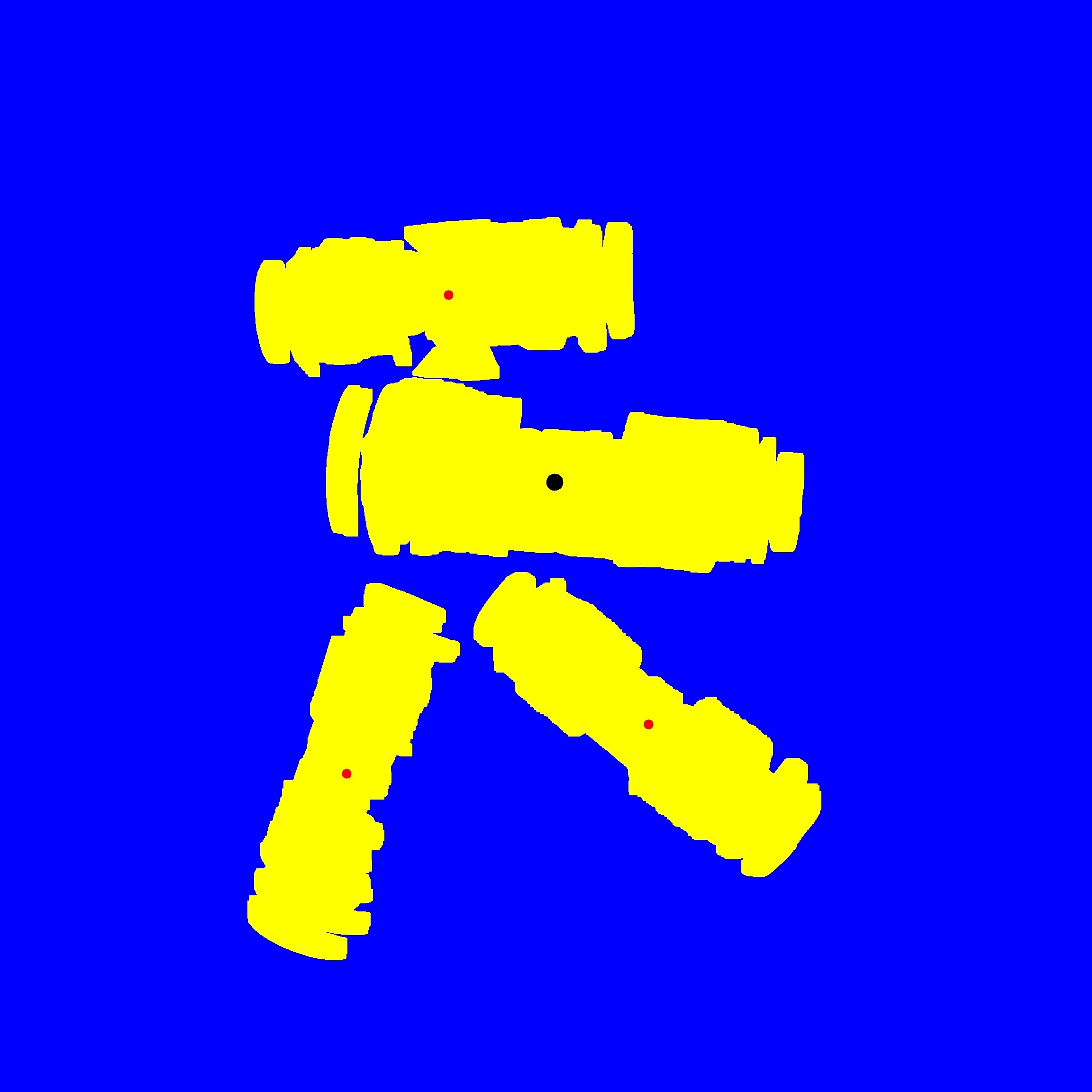

Task 1 Grounding — MCQ dots marking candidate parts for selection

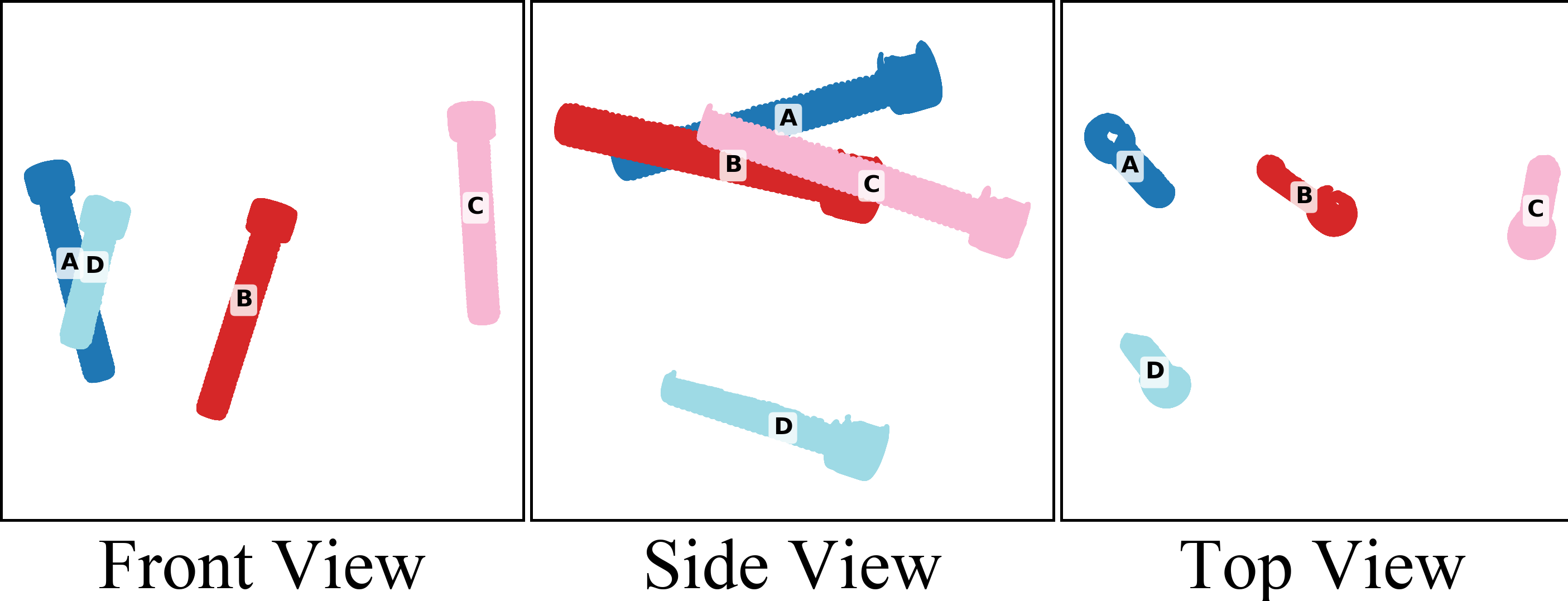

Task 1 Three-View — Rendered front/side/top views with labeled parts

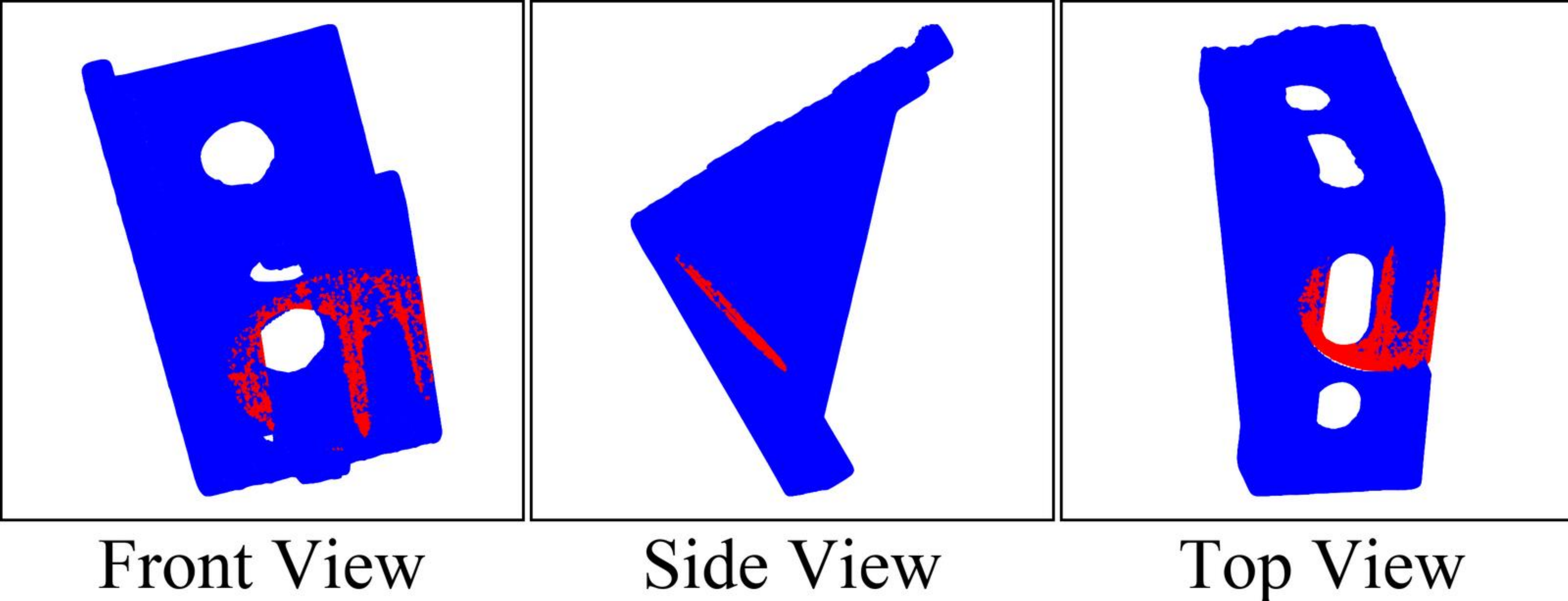

Task 2: Cut defect — Surface scratch on a corner bracket

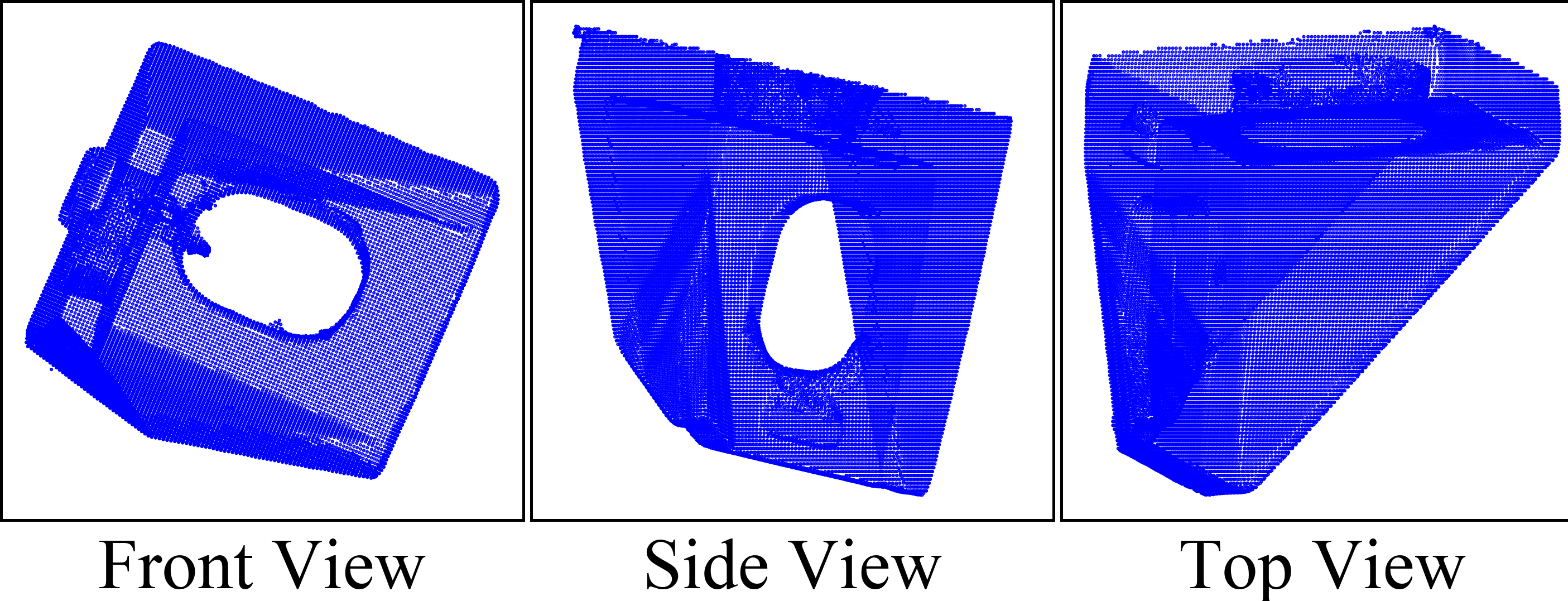

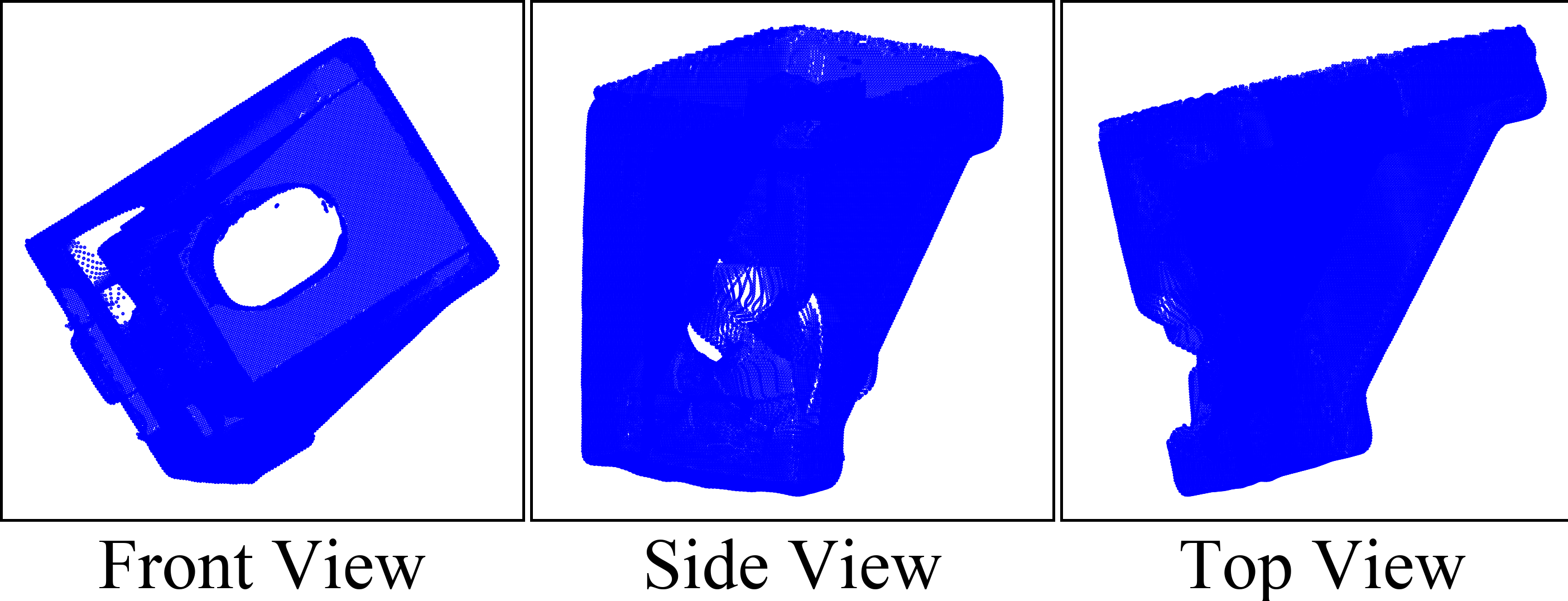

Task 2: Another defect — Defect classification from three-view render

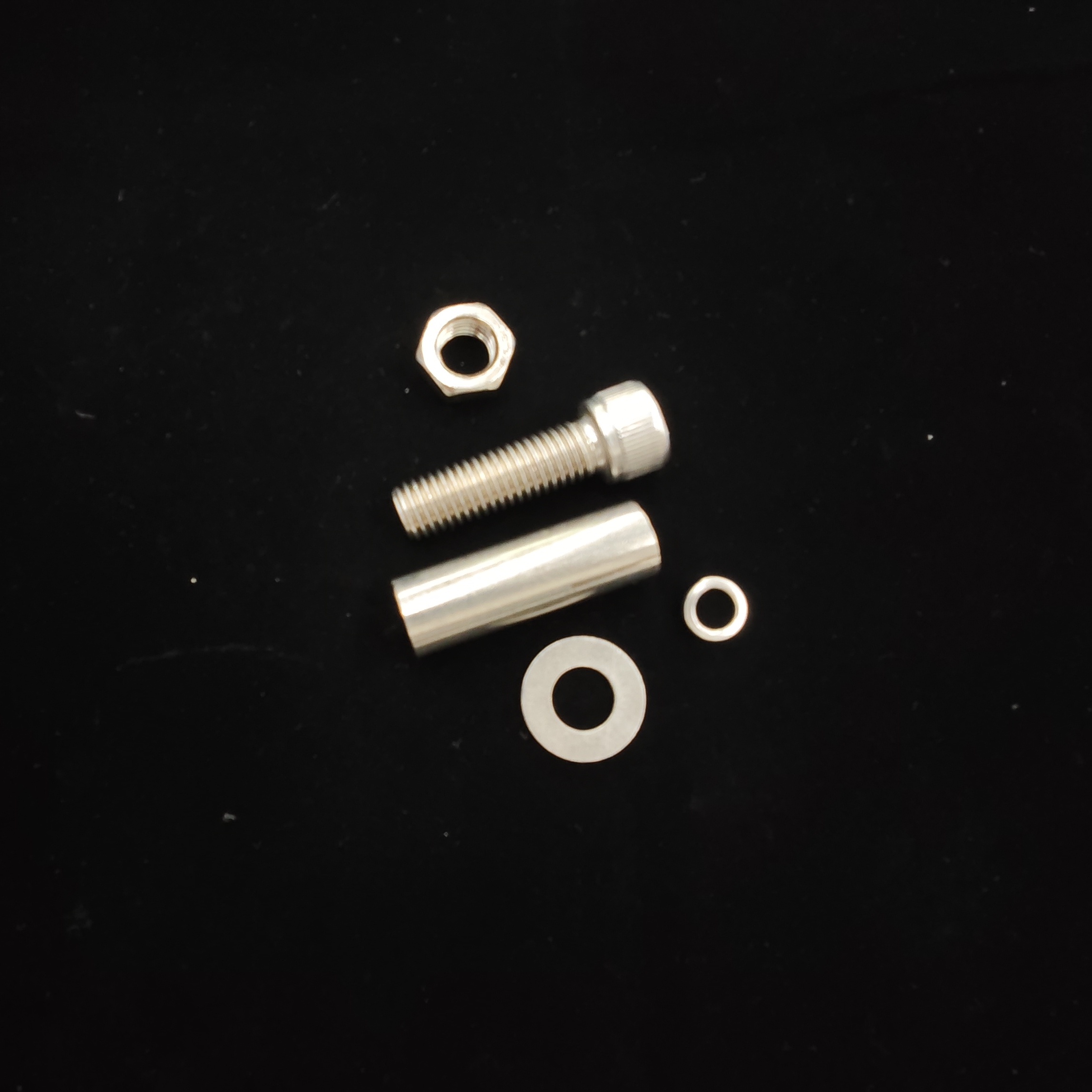

Task 3 Image — Assembly with an extra/wrong component

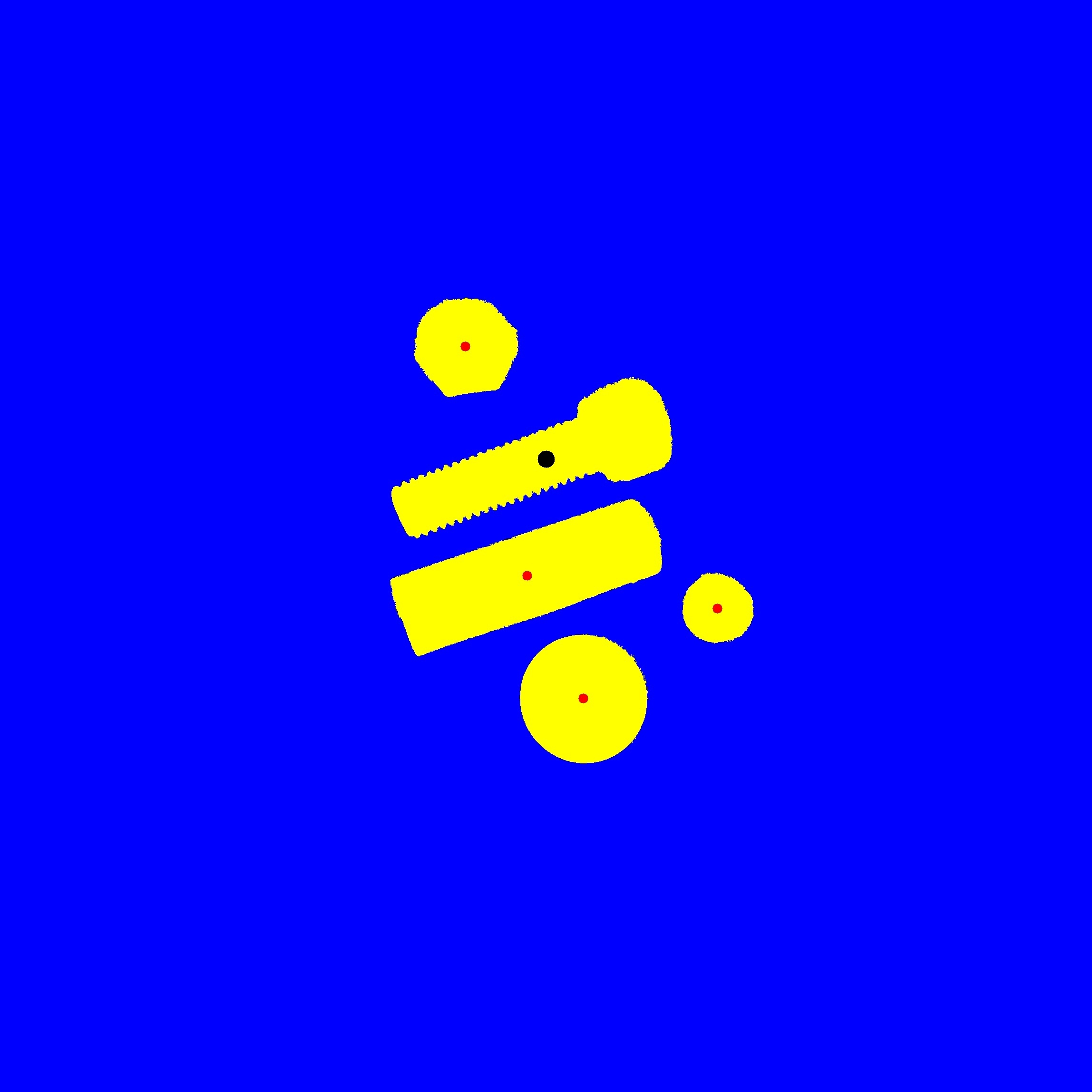

Task 3 Grounding — MCQ dots identifying candidate anomalous parts

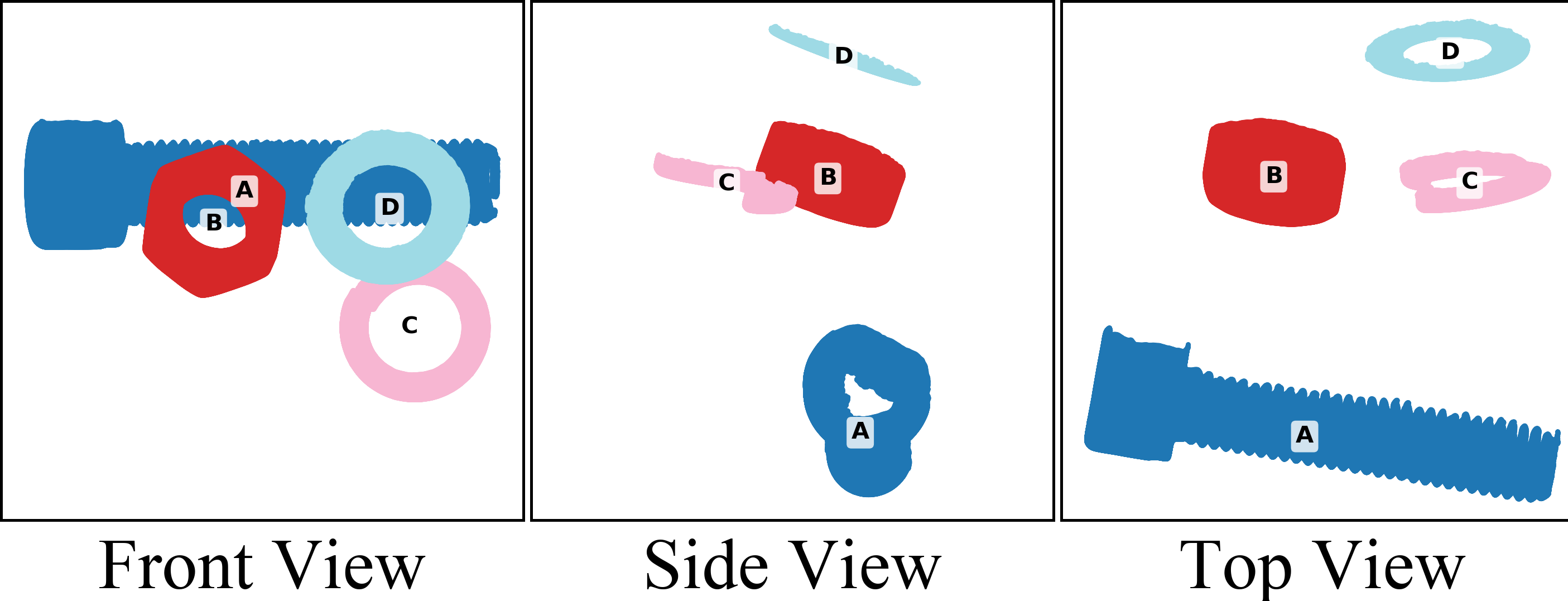

Task 3 Three-View — Assembly with labeled parts, one is extra

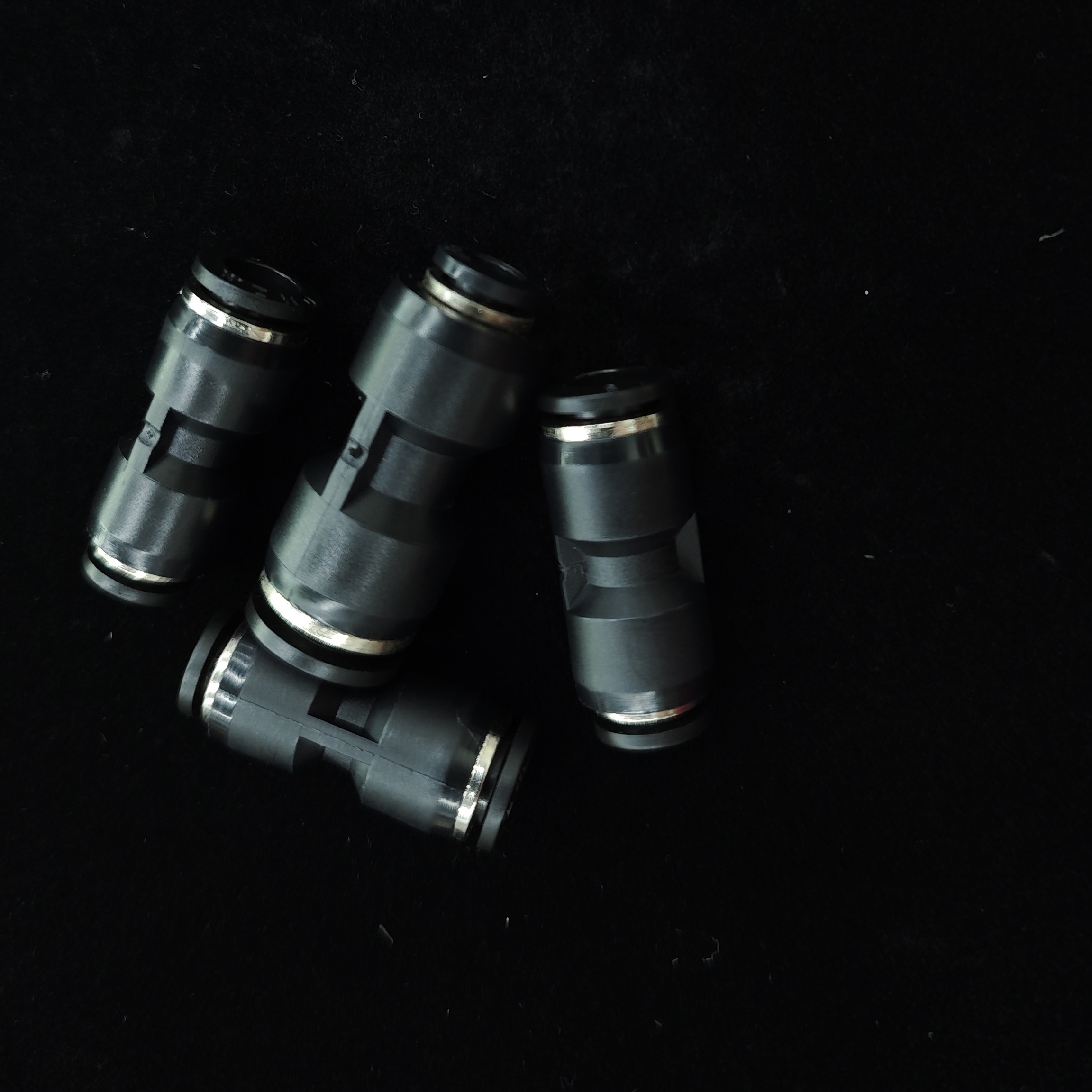

Task 1 Image — Different assembly scenario with mixed models

Error Analysis

Analyzing where and why MLLMs fail on manufacturing tasks.

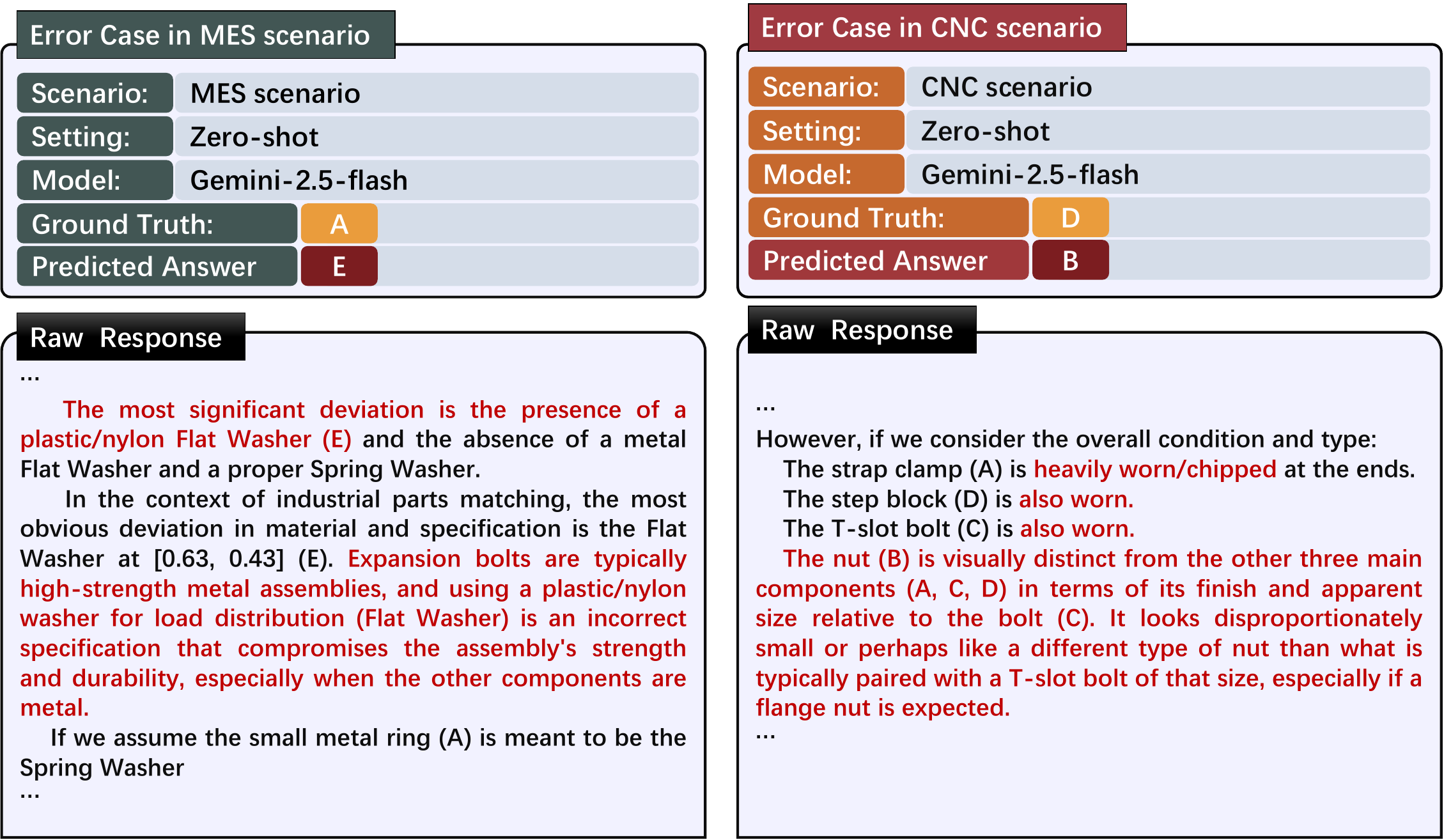

Figure 5. Representative error cases from Gemini-2.5-Flash. Left: the model incorrectly identifies a flat washer material mismatch (predicting E instead of A). Right: the model provides extensive reasoning about worn parts but selects the wrong component (predicting B instead of D).

Key Findings

Insights from evaluating 18 state-of-the-art MLLMs on manufacturing quality inspection.

🔎

Visual Grounding is Not the Bottleneck

Frontier models achieve 86–98% accuracy on spatial grounding ablations, confirming they can locate and match parts across images. The limitation lies elsewhere.

📚

Domain Knowledge is the Primary Gap

MLLMs lack fine-grained manufacturing knowledge (model numbers, specifications). Model-number tasks are 2–3x harder than coarse workpiece identification.

📈

ICL Consistently Helps

In-context learning with labeled examples improves performance across nearly all models, with gains of 10–20% on average. Best result: GPT-5 reaches 85.2% on Task 1 with ICL.

⚠️

References Can Hurt

Counter-intuitively, normal reference images sometimes degrade performance on three-view tasks, suggesting models struggle with multi-image comparative reasoning.

🛠

SFT Shows 90.8% Relative Gain

A 3B-parameter model fine-tuned on domain data matches a 235B model, demonstrating that domain-specific training dramatically closes the gap.

📡

Task 2 is the Hardest

Surface defect classification peaks at only 47.1% accuracy (Gemini-3-Flash with ICL), suggesting fine-grained defect discrimination remains an open challenge.

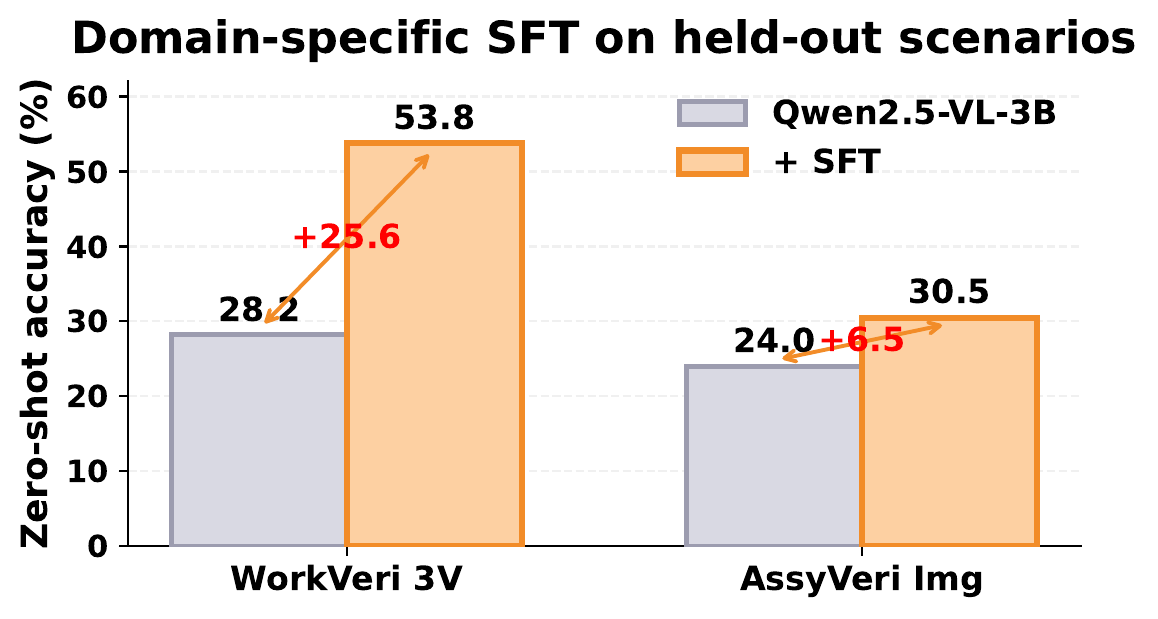

Figure 6. Domain-specific supervised fine-tuning on a 3B model achieves +25.6% absolute improvement on held-out manufacturing scenarios, matching the 235B model's performance.
